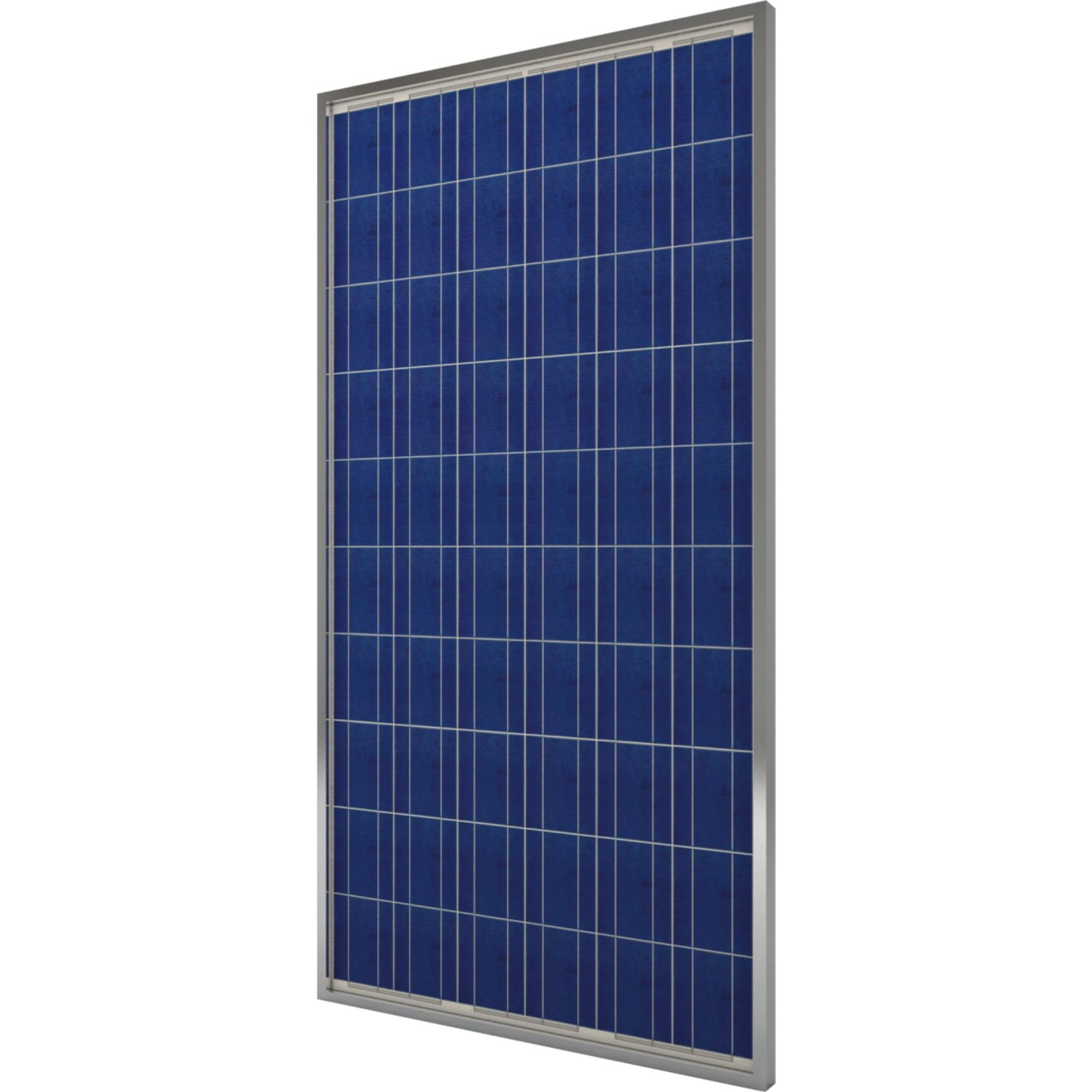

Polycrystalline photovoltaic modules 260 Wp

• Efciency 15,9 %
• Suitable for of-grid and on-grid application
• Positive tolerance -1/+3 %
• Certifcates – TUV, CE, EN 61215, EN 61730

Electrical data

• Number of cells: 60
• Peak power: 260 Wp
• Voltage at maximum power: 31 V
• Open circuit voltage: 38,2 V
• Current at maximum:  8,4 A
• Short-circuit voltage:  9 A
• Working temperature, from -40 to 85 °C
• Nominal operating cells temperature:  45°C
• Maximal system voltag :  1000 V

Technical data

• Module dimensions: 1650 x 990 x 40mm
• Junction box IP-65, 3 diode, cables 2х1 m, connectors MC4
• Tempered low-iron solar glass 3,2 mm
• Frame Anodized aluminium
• Weight: 19 kg
